Our Product
-

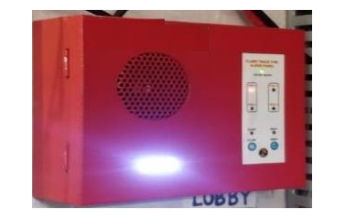

Input Voltage: 180VAC - 240VACOperating Voltage: 10VDC - 12VDCBattery Charging Voltage: 12.5VDC - 13.98VDCBattery Type: Dry cell rechargeable BatteryBattery Voltage: 10VDC - 12.5VDCBattery Current: 6Amp - 7.3AmpButton Type: Push Button used for Reset & Log Function.Input Voltage Protection:Display Type: 7" Colour TFT DisplayLog Record: 40% of Installed DevicesZone Capacity: 0 - 250Max. Device Capacity: 0 - 250 DevicesAlarm Display: Zone, Detector, Date, Time, Landmark, Detection TypeCommunication Type: Radio Frequency(RF)Frequency: 333.9MHz, 433.9MHz, 2.36GHzHooter Decibel: 90 - 110dBMaterial of Hooter(Sounder): PlasticOperating Voltage of Hooter: 9VDC - 12VDCPanel Box Type: Metal With High Quality Powder CoatingAutomatic Battery Charging Facility: -
Input Voltage: 180VAC - 240VAC2. Operating Voltage: 10VDC - 12VDCBattery Charging Voltage: 12.5VDC - 13.98VDCBattery Type: Dry cell rechargeable BatteryBattery Voltage: 10VDC - 12.5VDCBattery Current: 1.3AmpButton Type: Push Button used for Reset FunctionInput Voltage Protection:Display Type: 1.5" DisplayAlarm Display: Device IDMax. Device capacity: 0 - 50 DevicesCommunication Type: Radio Frequency(RF)Frequency: 333.9MHz, 433.9MHz, 2.36GHzHooter Decibel: 90 - 110dBMaterial of Hooter(Sounder): PlasticOperating Voltage of Hooter: 9VDC - 12VDCPanel Box Type: Metal With High Quality Powder CoatingAutomatic Battery Charging Facility: -
Input Voltage: 180VAC - 240VACOperating Voltage: 10VDC - 12 VDCBattery Charging Voltage: 12.5VDC - 13.98VDCBattery Type: Dry cell rechargeable BatteryBattery Voltage: 10VDC - 12.5VDCBattery Current: 1.3AmpButton Type: Push Button used for Reset FunctionInput Voltage Protection:Control panel Capacity: 0 - 50 DevicesCommunication Type: Radio Frequency(RF)Frequency: 333.9MHz, 433.9MHz,2.36GHzHooter Decibel: 90 - 110dBMaterial of Hooter(Sounder): PlasticOperating Voltage of Hooter: 9VDC - 12VDCControl Panel Box Type: Metal With High Quality Powder CoatingAutomatic Battery Charging Facility.: -
Voltage Range: 3 - 9VDCStandby Current: 10 - 30 μAOperating Current: 10 - 15mASensor: Optical sensorModulation Method: FM / AMLED Indication:Address Type: unique addressTransmission Type: RF Waves & SignalCommunication Type: RF FrequencyFrequency Used: 333.9MHz, 433.9MHz, 2.36GHzPCB Type: Multi-layer PCBMoisture protection: Using High Quality Moisture Spray & tubeType of material: ABS Grade/White colourOptical Chamber: High Quality Plastic Grannuals / Black ColourBattery Type: 9VDC Alkaline BatteryBattery Life: 3-4 Years / Consider daily 2-3 Signals -
Voltage range: 3 - 9 VDCStandby Current: 10 - 30 μA maxOperating Voltage: 10 - 15 mASensor: Thermistor sensorModulation Method: FM / AMLED Indication:Address Type: unique addressTransmission Type: RF Waves & SignalCommunication Type: RF frequencyFrequency Used: 333.9MHz, 433.9MHz, 2.36GHzPCB Type: Multi-layer PCBMoisture protection: Using High Quality Moisture Spray & tubeType of material: ABS Grade / White colorOptical Chamber: High Quality Plastic Grannuals / Black ColourBattery Type: 9VDC Alkaline BatteryBattery Life: 3-4 Years / Consider daily 2-3 Signals
-
Voltage Range: 3 - 10 VDCStandby Current: 0 - 5 μAOperating Current: 10 - 20 mAButton Type: Push Type Switch / Glass Break TypeModulation: FM modulationAddress Type: unique addressTransmission Type: RF Waves & SignalCommunication Type: RF frequencyFrequency Used: 333.9MHz, 433.9MHz, 2.36GHzPCB Type: Multi-layer PCBMoisture protection: Using High Quality Moisture Spray & tubeMaterial Type: ABS Type / Metal TypeBattery Type: 9VDC Alkaline BatteryBattery Life: 3-4 Years / Consider daily 2-3 Signals -
Induced Gas: Natural Gas / LPGWorking Voltage: DC 12V / AC 220V 50HzStatic Current: < 100mAAlarm Current: < 100mAPower Consumption: < 3WAlarm Sound Level: > 80dB/m -
Voltage Range: 9 - 12 VDCStandby Current: 30 - 40 μASensor: UltravoiletVisual Range: 90 degreeModulation Method: FMAddresing Method: Unique address embeddedFrequency: 433.9MHz , 333MHz , 2.36GHz -
Operating Voltage: 12 - 32 VDCStandby Current: 17 μA maxSensor: Infrared BeamSensitivity: SelectableAddresing Method: Unique address embeddedFrequency: 433.9MHz, 333MHz, 2.3GHz -
Operating Voltage: 3 - 9 VDCStandby Current: 5 μA maxModulation: FM ModulationType: ManualAddresing Method: Unique address embedded -
Operating Voltage: 12 VDCStandby Current: 850 mA maxSound Level: 115 dbDimensions: 900MM*60MM -
Type: Push-in and Push OnScrew-in connection: M 10 x 1Tube size: 6X4 mm
8X6 for ABC powder with M 12x1 threadMaterial: SS or Brass, Nickel chrome platedOperation Pressure: 18 to 20 BarTest Pressure: 80 Bar -

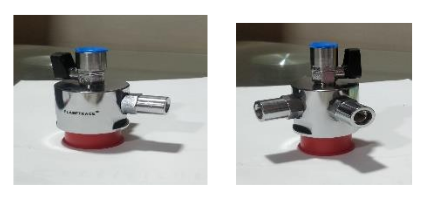

Screw-in connection: M 10 X 1Pressure Gauge connection: M 10x1Material: Brass, Nickel chrome platedOperation Pressure: 18 to 20 BarTest Pressure: 40 BarPressure Gauge: Scale 0-28 bar -
Type: Push-in and Push OnScrew-in connection: M 10 x 1Tube size: 6X4 mmMaterial: SS or Brass, Nickel chrome platedOperation Pressure: 18 to 20 BarTest Pressure: 40 bar -
Body: MS fabricated with powder coatingOperating Current: 240V ACInput Current: 230V ACOutput Current: 12V DCIndications: Power On
Silence
Fault
Fire or Pressure dropSwitches: Power ON/OFF
TestOutputs: Sounder operation
Spare output is optional to activate or de-activate any system, as per requirement of customer.Battery (Single Battery): 12V1.2Ah -

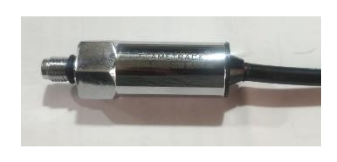

Switch Type: SPDTScrew-in connection: M 10 x 1Type: SPDTElectrical Rating: 24V DCOperation Pressure: 4±0.5 BarTest Pressure: 30 BarElectrical Connection: Com, NO, NC -
Approval: CEScrew-in connection: M 30 x 1,5Dual NRV: Any port can be used for fixing pressure switch and pressure gauge. Can be interchanged on site.Top connection: G 1/4”Manometer Connection (Pressure Gauge): M 10 x 1Pressure switch Connection:: M 10 x 1 Switching pressure: 4± 1 barExtinguishing agent:: Powder, water, foam, halon alternativesPropellants:: Nitrogen, compressed airWorking pressure:: 10 – 18 barTest Pressure:: 40 BarOperating temperature range:: -20°C … +60°CLeakage rate:: 10 -4 mbar l/sMaterials:: Valve body - Brass, nickel-chrome plated
Primary seals - Neoprene
